FCT1-33D3SL Forward Mode Power Over Ethernet Transformer For 30 Watt Telecommunications

Name: FCT133D3SL Forward Mode Power Over Ethernet Transformer For 30 Watt Telecommunications
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : FCT1-33D3SL

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Reel

Product name : FCT1-33D3SL Forward-Mode Transformers For 30 Watt Telecommunications

Bias winding output : 12 V

sync winding output : 5 V

Weight : 10.1 – 10.7 g

Core material : Ferrite

Ambient temperature : –40°C to +125°C

Contact Now

FCT1-33D3SL Forward-Mode Transformers For 30 Watt Telecommunications

Feature:

• Designed to meet 30 W PoE IEEE 802.3at-2009 standard.
• Operates at 250 kHz with 36 – 72 Volts input.
• 1500 Vrms, one minute isolation, primary and bias to secondary
• Bias winding output: 12 V; sync winding output: 5 V

Core material Ferrite
Terminations RoHS tin-silver over tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight 10.1 – 10.7 g
Ambient temperature –40°C to +125°C
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)

Part number	Inductance min (μH)	DCR max (mOhms)				Leakage inductance max (μH)	Turns ratio			Output	Recommended output inductor
Part number	Inductance min (μH)	pri	sec	bias	sync	Leakage inductance max (μH)	pri : sec	pri : bias	pri : sync	Output	Recommended output inductor
FCT1-33D3SL_	72.9	27.5	5.0	250	160	0.425	1 : 0.33	1 : 1	1 : 0.56	3.3 V, 9 A	SER2013-472
FCT1-50D3SL_	72.9	27.5	10.0	250	160	0.420	1 : 0.44	1 : 1	1 : 0.56	5 V, 6 A	SER1360-103
FCT1-120D3SL_	72.9	27.5	28.5	250	160	0.175	1 : 1	1 : 1	1 : 0.56	12 V, 2.5 A	MSS1278-563
FCT1-195D3SL_	72.9	27.5	32.0	235	120	0.235	1 : 1.44	1 : 0.88	1 : 0.44	19.5 V, 1.55 A	MSS1278-154
FCT1-240D3SL_	72.9	27.5	72.5	235	120	0.235	1 : 1.78	1 : 0.88	1 : 0.44	24 V, 1.25 A	MSS1278-224

FCT1-33D3SL Forward-Mode Transformers For 30 Watt Telecommunications

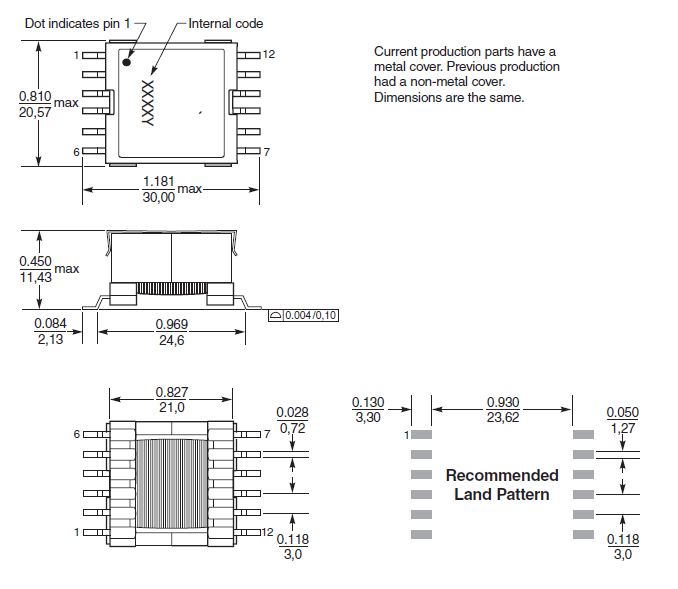

Shape and Dimensions:

Product picture:
